- Up to 12-core Intel® Core™ Ultra 7/5 Processor (Meteor Lake-U) with Integrated AI Boost
- 1 DDR5 SO-DIMM up to 48GB
- Fanless -20°C to 65°C Operating Temperature
- Dual 2.5G LAN with TSN, 4x 1G LAN, 2x 1G SFP via SUMIT
- Internal 2.5" SATA SSD with accessible mounting bracket
- 9V to 55V DC-in
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- 3 USB 3.2 Gen 2 (incl. 1x USB-C with DisplayPort)
- Supports 3 Independent Displays, up to 4K resolution

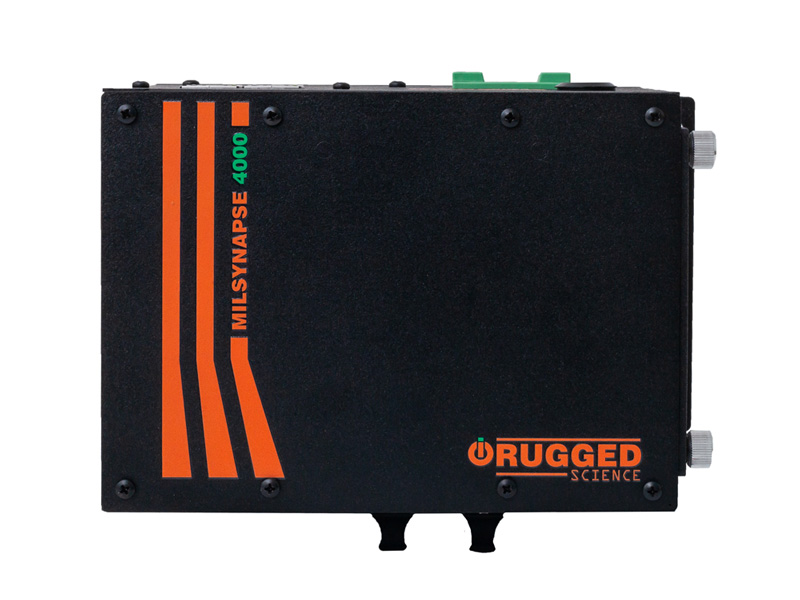

Purpose-built for vehicle control, command centers, and secure comms, the Rugged Science MILSYNAPSE 4000 is a military-grade embedded computer engineered for compact deployment and ultra-reliable edge performance. Powered by up to 12-core Intel® Core™ Ultra processors with integrated AI acceleration via Intel® AI Boost, it’s ideal for mission-critical environments where size, thermal efficiency, and high-bandwidth I/O are essential. The system meets MIL-DTL and MIL-STD requirements and is designed for deployment in shock, vibration, EMI, and thermally intense settings.
Powered by Intel® Core™ Ultra 7/5 Meteor Lake-U processors with up to 12 physical cores and integrated Intel® AI Boost, the MILSYNAPSE 4000 supports up to 48GB of DDR5 memory and one internal 2.5" SATA SSD with an accessible bracket for field maintenance. With support for Intel® vPro, TPM 2.0, TCC, and Time-Sensitive Networking (TSN), it offers secure, real-time processing for modern defense applications.

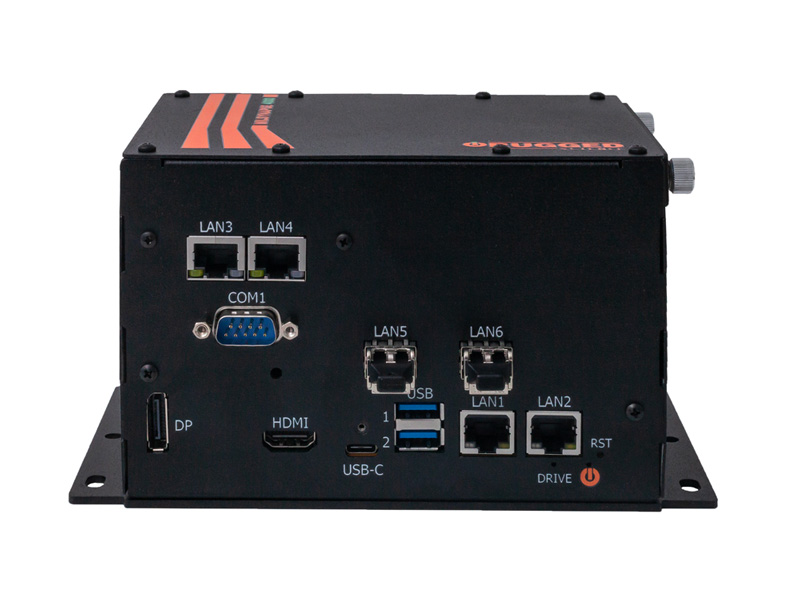

Designed for I/O versatility, the MILSYNAPSE 4000 includes dual 2.5G LAN with TSN, four 1G LAN ports, and two 1G SFP ports via pre-installed SUMIT expansion. It supports triple independent displays (HDMI 2.1 + 2x DisplayPort), three USB 3.2 Gen 2 ports—including a 20Gbps USB-C with DisplayPort—two optional COM ports, and internal M.2 Key B and Key E sockets for wireless or cellular expansion.
Built with no moving parts, the MILSYNAPSE 4000’s fanless, solid-state design ensures silent operation and long-term dependability. Its compact chassis is engineered to perform in harsh conditions with an operating temperature range of -20°C to +65°C (-4°F to 149°F) and wide 9V–55V DC input power support.

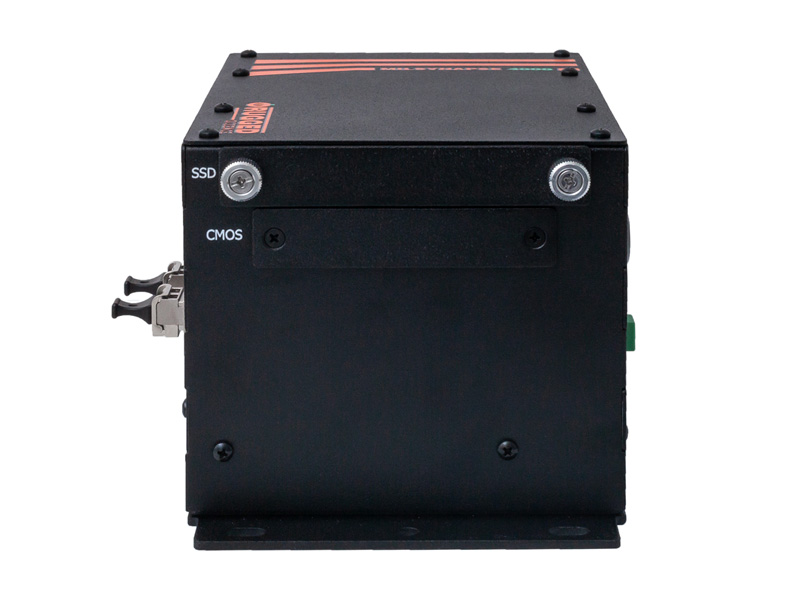

The MILSYNAPSE 4000 offers a streamlined embedded form factor with high-performance I/O, onboard display outputs, and internal M.2 expansion options to support evolving mission needs. With accessible mounting points and CMOS battery access, it's built for in-field maintainability and lifecycle flexibility. Contact a Rugged Science sales engineer for MILSYNAPSE configuration options.
| System | |
| Processor | Up to 12-core Intel® Core™ Ultra 7/5 Processor (Meteor Lake-U) with Integrated AI Boost |
| Chipset | Intel® SoC |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 1 DDR5 SO-DIMM up to 48GB |
| OS | Windows 11, Windows 10, Linux |
| I/O Interface | |
| Serial (Optional) | 2 COM RS-232/422/485 (ESD 8KV) |
| USB | 1x USB 3.2 Gen 2x2 Type-C (20Gbps + DP 1.4), 2x USB 3.2 Gen 2 Type-A |
| LED | Internal 2.5" HDD/SSD bracket indicator |
| Expansion | |
| M.2 |
- 1x M.2 Key B (3042/3052, PCIe x2/USB3/default USB2, with SIM) - 1x M.2 Key E (2230, PCIe x1/USB2) |
| SUMIT | 1 SUMIT B (Pre-installed, customized chassis) |
| Graphics | |
| Displays |
Supports Three Independent Displays: - 1x HDMI 2.1 (4096x2304 @60Hz) - 1x DisplayPort 1.4 (4096x2304 @60Hz) - 1x DisplayPort 1.4 via USB-C (3840x2160 @60Hz) |
| Storage | |
| SATA | 1x SATA III (6Gbps) with internal 2.5" SSD bracket |
| Audio | |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Ethernet | |
| LAN |
- 2x 2.5GigE LAN (Intel® I226) with TSN - 4x 1GigE LAN - 2x 1G SFP via SUMIT Expansion |
| Power | |
| Power Input | DC 9V to 55V |

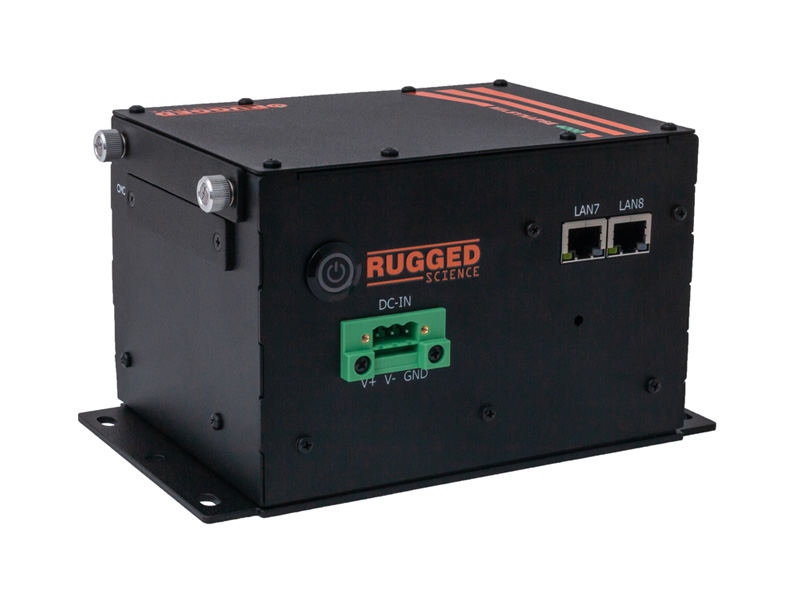

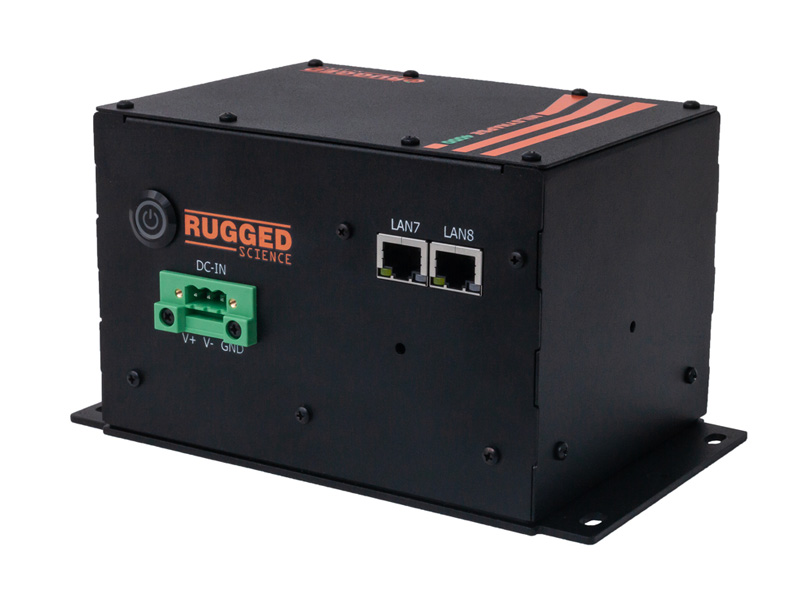

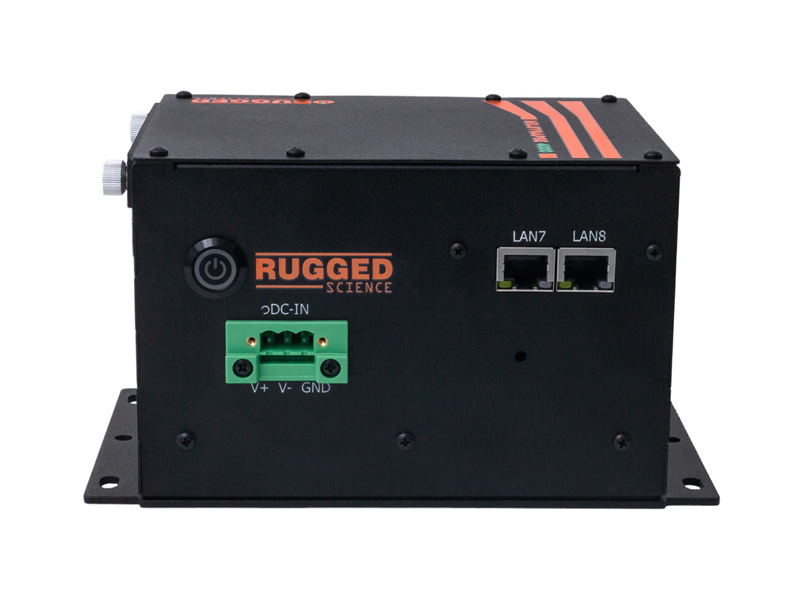

| Power Interface | 3-pin Terminal Block: V+, V-, Frame Ground |
| Others | |
| TPM | Infineon SLB9672 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset: 1 to 255 sec./min. per step |
| HW Monitor | Monitoring temperature and voltages; auto throttling on CPU overheat |
| Mechanical | |
| Dimensions | 6.1" x 4.09" x 5.23" |
| Weight | 3.1 lbs |
| Environment | |
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock | Designed to meet MIL-DTL-901E (when integrated into appropriate enclosures) |
| Vibration | Designed to meet MIL-STD-167-1 (when integrated into appropriate enclosures) |
| EMI | Designed to meet MIL-STD-461 (when integrated into appropriate enclosures) |
| Attachment | Size |
|---|---|
 MILSYNAPSE_4000_web.pdf | 582.38 KB |
