- 24” LCD display with LED backlight
- 1920x1080 resolution
- 2.8mm tempered glass
- Brightness 300 cd/m2
- 89 degree viewing angle H & V
- IP65 Front | IP54 Back
- Bezel mounted OSD
- 5-wire Resistive Touchscreen

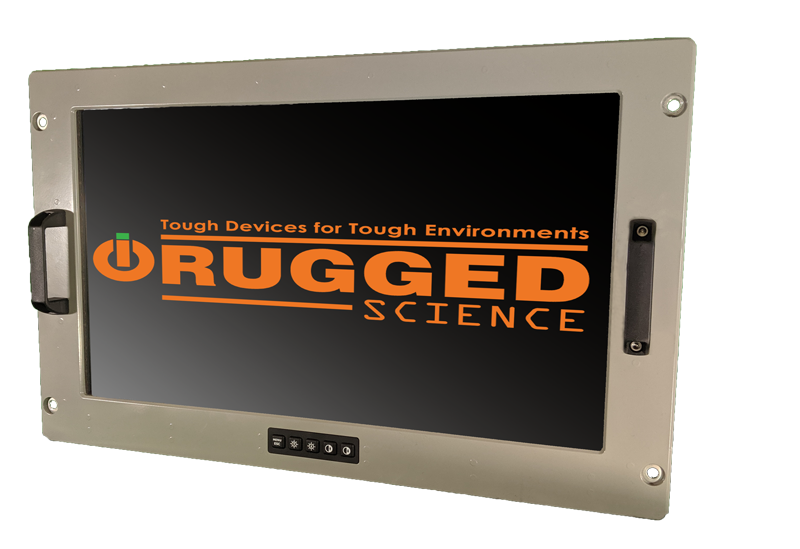

The 24in MILGUARD display from Rugged Science is a ruggedized and shock approved wide screen LCD suitable for use as a panel mount console monitor. The 24in MILGUARD features a 1920x1080 WUXGA resolution in a widescreen 16:9 aspect ratio. The 24in MILGUARD is a fan-less design, with a tough, corrosion resistant housing, and wide viewing angles to ± 89 degrees. It features 5-Wire
Resistive Touch, and bezel mounted, user-programmable OSD menu keys.
| Display | |
| Type | TFT Active Matrix LCD Display with LED backlight |
| Dimensions (inches) | 15.72 (H) X 25.38 (W) X 2.94 (D) |
| Weight | 18 lbs |
| Ingress Rating | IP65 Front | IP54 Back |
| Screen Size | 24 inch diagonal |
| Resolution | 1920x1080 | 16:9 wide screen aspect ratio |
| Glass | 2.8mm optically bonded tempered glass |
| Coating |
Anti-Reflective Coating
|
| Brightness | 300 cd/m2 |
| Brightness Control | Push Button control 0-100% logarithmic |
| Contrast |
5000:1
|
| Colors | 16.7M |
| Min Viewing Angle | +/-89o(H), +/-89o(V) |
| Touchscreen |
5-wire resistive touch
|
| OSD Menu | Front bezel mounted OSD menu buttons that allow directly accessible brightness up/down |
| Power | |
| Input Power |
VOLTAGE: 9-36VDC
CURRENT: 3.3 AMP MAXIMUM @ 9 VDC
POWER CONSUMPTION: 30 WATTS MAXIMUM
|
| Operating Temperature | -20oC to 60oC |
| I/O Ports |
USB Touchscreen
VGA Connector
DVI Connector
|
| Certifications (Panel Mount Application) | |
| Shock | MIL-STD-901D |
| Vibration | MIL-STD-167-1A |
| Electromagnetic Interference (EMI) | MIL-STD-461G |
| Environmental | MIL-STD-810G |
| Attachment | Size |
|---|---|
 MILGUARD_24IN_DISPLAY_SPECSHEET.pdf | 1.12 MB |
