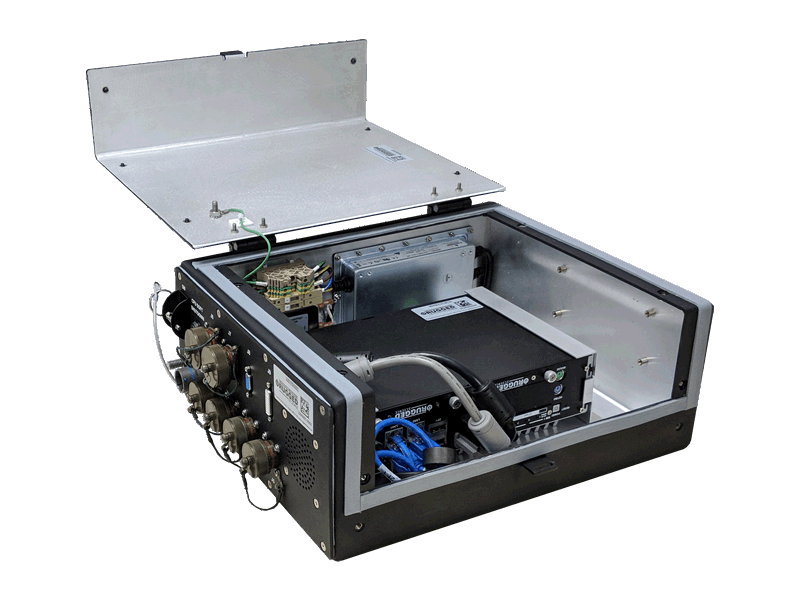

The Operator Interface Computer (OIC) from Rugged Science is an environmentally sealed, IP65 enclosure that has been approved for MIL-S-901D Shock, Grade A, Type 1 in an unrestricted mounting orientation. It is designed with corrosion resistant all aluminum construction and serves as a protective enclosure for a MILCORTEX 3000-Series embedded computer, which can be ordered separately with different options and supplied as a fully assembled enclosed and sealed headless computer.

The enclosure door features a locking provision for physical security and can include an optional remote door monitoring alarm. A pre-configured I/O plate on the bottom of the OIC Enclosure provides customized selection of input/output connections via circular military connectors or optional commercial connectors. An aluminum mounting bracket kit allows the OIC Enclosure to be either deck or bulkhead mount. Its compact dimensions make it ideal for shipboard spaces where bulkhead real estate is limited.

System
Processor Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
Configurable External I/O Bottom Plate
Circular MIL Connectors 2x GbE RJ45
1x USB

1x Power Input

Locking Circular Connector
1x HDMI
Power Toggle Switch
CPU On/Off Button
Fiber Cable Glands with Internal ST Fiber Landing
Patch Panel (2x)
2x Transmit/Receive 100FX
2x Transmit/Receive 1000LX
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2x Full-Size PCIe for PCIe/USB/External SIM/mSATA
- 1x Half-Size for PCIe/Internal SIM
PCI/PCIe 1 PCI/PCIe x4 Slot
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Processor
- Intel® HD Graphics 630/530
Interface
DVI-D: Up to 1920 x 1200 @ 60Hz
DVI-I: Up to 1920 x 1200 @ 60Hz
DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA 2x SATA III (6Gbps)
mSATA 2x SATA III (Mini PCIe Type, 6Gbps)
SATA DOM 1x SATA II (3Gbps)
M2 DOM 1x PCIe 3.0 (8GT/s)/SATA III (6Gbps)
Storage Device
-1x CFast Socket, Push-in/Push-out Ejector/2x
Front-access 2.5” SSD/HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
LAN 2 Intel® I210 GigE LAN
PoE (LAN 3-6) Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®
Power
Power Input 115-230VAC, 60Hz, 1 Phase
Mechanical
Dimension (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 4.6 kg (10.14 lb)
Mounting
- Wallmount by mounting bracket
- DIN Rail Mount
- 2U Rackmount (Optional)
Mechanical & Environmental
Weight 32lbs (including mounting bracket)
Dimensions 14”(W) x 15”(H) x 8”(D)
Operating Temperature -20°C to 60°C
Storage Temperature -20°C to 85°C
Humidity 0 to 95%
Shock MIL-STD-901D, Grade A
Vibration MIL-STD-167-1A
EMI MIL-STD-461G
EPOWER MIL-STD-1399
AttachmentSize
PDF icon MILCORTEX OIC DATA SHEET.pdf16.28 MB
