- Intel® Core™ i7/ i5/ i3/ Celeron® U-series Processor
- 16GB, 1 DDR4 2133 MHz RAM
- Intel® HD Graphics 520
- Rugged, fan-less, -10°C to 60°C operating temperature
- 1920x1080 resolution
- Designed to meet military shock, vibration, and EMI standards

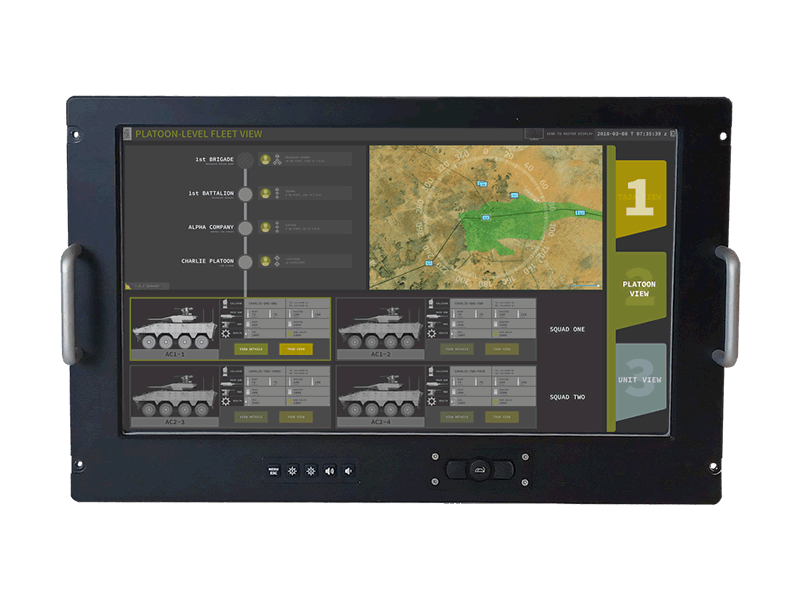

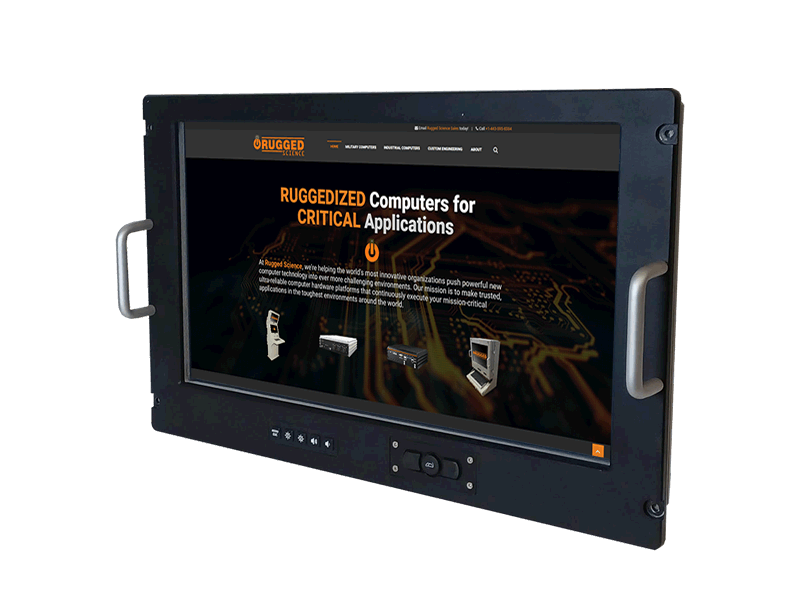

Our MILSYNAPSE 24in Rugged Military Panel PC is designed to meet or exceed all military standards for shock, vibration, and electromagnetic interference. They are tough, powerful, and ready to deploy now.
They feature a fanless design with a tough, corrosion resistant housing, and wide 24" diagonal viewing area. The internal MILSYNAPSE computer delivers with powerful Intel® Core™ i7/ i5/ i3/ Celeron® CPUs, and up to 16 GB RAM.
All MILSYNAPSE Military Panel PCs offer convenient on-screen controls, auto-dimming, and integrated Intel HD graphics as standard.
| System & Motherboard | |
| CPU | Intel® Core™ i7/ i5/ i3/ Celeron® U-series Processor (Skylake-U, up to 4M Cache, 3.4GHz) |
| RAM | (1) DDR4 2133MHz SO-DIMM, up to 16GB |
| GPU | Intel® HD Graphics 520 |
| Operating System | Windows 10, Window 8.1, Window 7, Linux |
| Input/Output | |

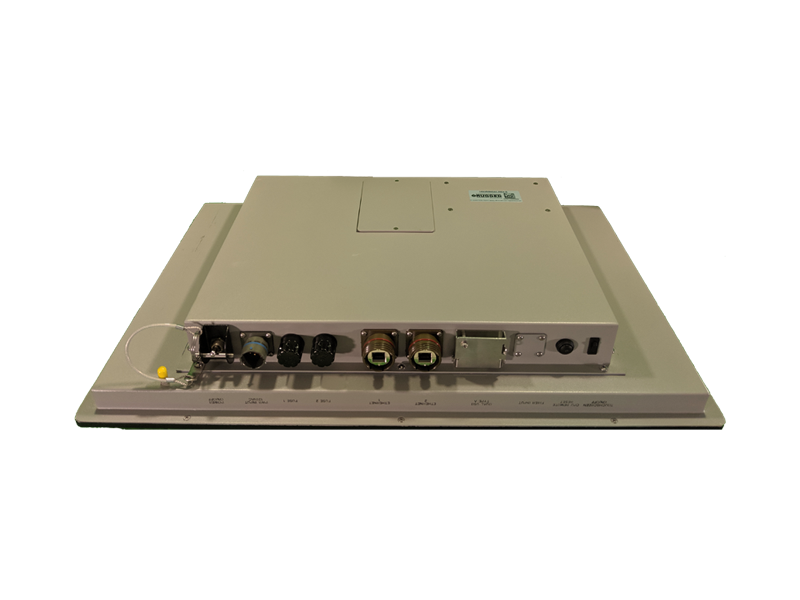

| USB | (2) USB3.0 Type A - MIL Circular Connector |
| Serial | (2) RS232/422/485 COM - IP65 DB9 Connector |
| Ethernet |
(1) Intel I219LM GbE LAN - MIL Circular Connector
(1) Intel I210 GbE LAN - MIL Circular Connector |
| Fiber | OPTIONAL - (2) Channel 10/100/1000/100000 |
| Power | 24VDC Input - MIL Circular Connector |
| Storage | |
| SATA | (2) SATA III (6Gbps) |
| mSATA | (1) mSATA (Mini PCIe Type, 6Gbps) |
| Display | |
| Type | LCD Display with LED Backlight |
| Screen Size | 24" diagonal |
| Resolution | 1920x1080 |
| Glass | 3mm AR Glass |
| Brightness | 1000 cd/m2 |
| Viewing Angle | ± 80 degrees horizontal and vertical |
| Touchscreen | OPTIONAL - Resistive Touch |
| Environmental | |
| Operating Temp. | -10°C to 60°C - MIL-STD-810G |
| Storage Temp. | -40°C to 70°C - MIL-STD-810G |
| Shock | MIL-STD-901D, Grade A, Class 1 |
| Vibration | MIL-STD-167-1 |
| EMI | MIL-STD-461 - CE101, CE102, CS101, CS114, CS116, RE101, RE102, RS101, RS103 |
| Attachment | Size |
|---|---|
 24 MilSynapse AIO DATA SHEET.pdf | 560.35 KB |
