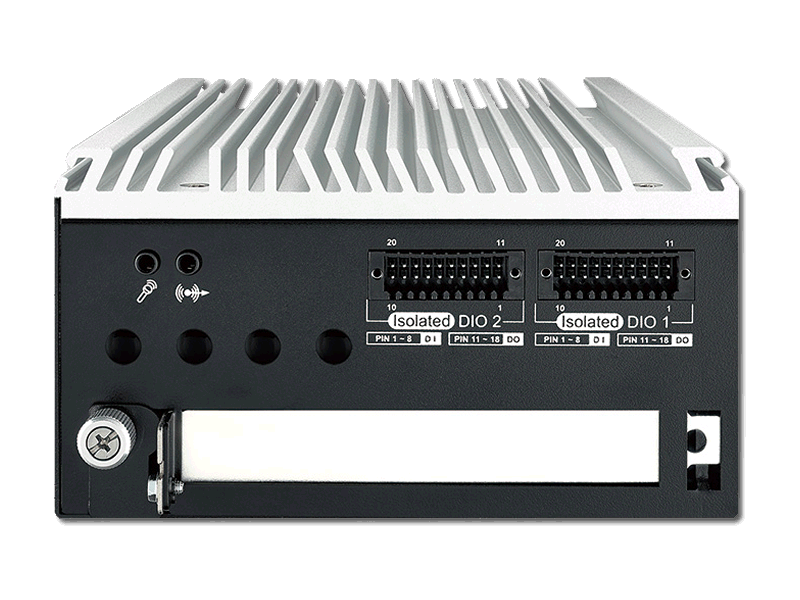

With remarkable system performance, all-in-one expandable integration, versatile I/O connections, 3 GigE LAN with 2 PoE+, Isolated COM, 1 PCI/PCIe x 4, 32 Isolated DIO, 1 SIM, 4 USB 3.0, smart management functions and rugged reliability, a Rugged Science ARS-2000 Series Compact Embedded Fanless Box PC is your great choice for Machine Vision, Smart Manufacturing, Intelligent Surveillance, Factory Automation, Intelligent Control any Industry 4.0/ IIOT applications.

Model

LAN

PoE+

COM (Isolated)

USB 3.0

Isolated DIO

GPIO

PCI/PCIe

2010M

3

2 M12

4(1)

4

32

NA

1 PCIe x4

2010

3

2 RJ45

4(1)

4

32

NA

1 PCIe x4

2001M

3

2 M12

4(1)

4

32

NA

1 PCI

2001

3

2 RJ45

4(1)

4

32

NA

1 PCI

2000ML

3

2 M12

2(1)

4

NA

32

NA

2000L

3

2 RJ45

2(1)

4

NA

32

NA

Series

CPU

Cores

GHz

TDP (W)

ECC RAM

Intel® Core™

i7-7600U

2

3.9

15

No

Intel® Core™

i7-6600U

2

3.4

15

No

Intel® Core™

i5-6300U

2

3

15

No

Intel® Core™

Celeron®3955U

2

2

15

No

System
Processor
Intel® Core™ i7/i5/i3 U-series Processor
(Kaby Lake-U/Skylake-U)
Chipset Intel® SoC
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
OS
Windows 10, Windows 8.1, Windows 7, Linux
(Windows 8.1 & 7 are not available for Kaby Lake)
I/O Interface
Serial
- 1 Isolated COM RS-232/422/485 (2.5kV Isolation)
- 3 COM RS-232/422/485
USB 4 USB 3.0 (External)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, PoE, Wireless
SIM Card  1 SIM Card Socket (External)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Full-size for PCIe/USB/External SIM Card/mSATA

- 1 Full-size for PCIe/USB/mSATA

PCI/PCIe 1 PCI/PCIe x16 Slot supports x4 Signal
Graphics
Processor Intel® HD Graphics 620/520
Interface
- DVI-I : Up to 1920 x 1200 @ 60Hz
- DVI-D : Up to 1920 x 1200 @ 60Hz
Storage
SATA
2 SATA III support S/W RAID 0, 1 :
- 1 SATA III (6Gbps)
- 1 SATA III co-lay with Mini PCIe (6Gbps)
mSATA 1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 2.5" SSD/HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 11.0
PoE
LAN 2
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
with Power On/Off Control
LAN 3
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
with Power On/Off Control
Power
Power Input 6V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin terminal block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM
Optional Infineon SLB9665 supports TPM 2.0, LPC
Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension (W x L x H) 186mm x 147mm x 82mm (7.3” x 5.8” x 3.2”)
Weight 2.2 kg (4.85 lb)
Mounting
- Wallmount by mounting bracket (8.6" x 5.8")
- Wallmount Kit (optional, 9.7" x 2.0")
- DIN Rail Mount (optional)
Environment
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 85°C
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
