- Advanced NVIDIA® Jetson AGX Orin™ platform up to 275 TOPS AI performance
- 2048 NVIDIA® CUDA® cores and 64 Tensor cores
- Supports 8 GMSL 1/2 automotive cameras with Fakra-Z connectors
- IP67 Anti-dust and Waterproof Chassis design
- 1 PCIe Gen3 x8 expansion slot
- 2 Isolated CAN-FD, 2 COM RS-232/422/485
- 2 GigE LAN , 2 USB 3.1, 1 Digital Display supports 4K60
- DC 9V to 50V wide range power input, Software Ignition Power Control

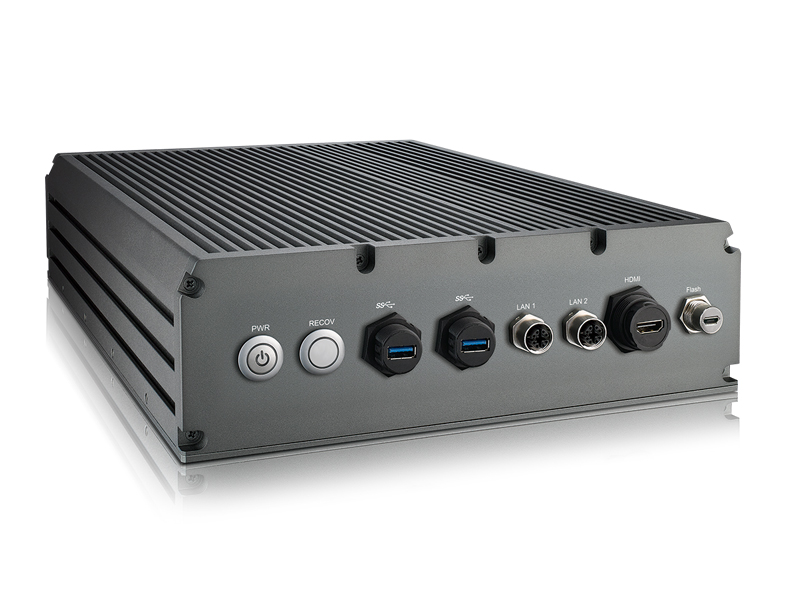

Introducing the Rugged Science RAC-1000, powered by the NVIDIA® Jetson AGX Orin™ platform. This rugged system boasts a 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor cores and a 12-core Arm® Cortex®-A78AE CPU, delivering an impressive 275 TOPS of AI performance. The RAC-1000 supports high-speed interfaces for multiple sensors, including 8 GMSL 1/2 automotive cameras with Fakra-Z connectors, 1 M12 Isolated CAN-FD, and 2 M12 COM RS-232/422/485 ports. With its IP67 protection design, the RAC-1000 is perfect for challenging environments such as automated agricultural machinery, outdoor robots, construction automation, and other Edge AI applications.
Model Name | Platform | RAM | LAN | USB 3.1 | Serial | Iso. CAN | Iso. DIO | PCIe Slot | GMSL | PoE+ | M.2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
RAC-1000-R32 | Jetson AGX Orin | 32GB | 2 | 2 | 2 | 2 | 16 | 1 | 8 | - | 4 |
RAC-1000-R64 | Jetson AGX Orin | 64GB | 2 | 2 | 2 | 2 | 16 | 1 | 8 | - | 4 |
RAC-1100-R32 | Jetson AGX Orin | 32GB | 2 | 2 | 2 | 2 | 16 | 1 | - | 4 | 4 |
RAC-1100-R64 | Jetson AGX Orin | 64GB | 2 | 2 | 2 | 2 | 16 | 1 | - | 4 | 4 |
| System | |
| CPU |
RAC-1000-R32 : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
RAC-1000-R64 : 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
|
| GPU |
RAC-1000-R32 : 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores
RAC-1000-R64 : 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor Cores
|
| DL Accelerator | 2x NVDLA Engines |
| Memory |
RAC-1000-R32 : 1 32GB LPDDR5 DRAM
RAC-1000-R64 : 1 64GB LPDDR5 DRAM |
| OS |
- Linux
- NVIDIA JetPack SDK
|
| I/O Interface | |
| USB | 2 USB 3.1 (M12) |
| Serial | 2 COM RS-232/422/485 (M12 A-coded) |
| LAN | 2 GigE LAN (M12 X-coded |
| HDMI | 1 HDMI 2.1 (M12) |
| CAN Bus | 2 Isolated CAN Bus support CAN FD (M12 A-coded) |
| Flash | 1 Micro USB OS flash port |
| Button | 1 Power Button with LED, 1 Recovery button |
| Expansion | |
| M.2 |
- 1 M.2 Key B Socket (3042/3052)
- 1 M.2 Key E Socket (2230)
|
| Graphics | |
| Interface | 1 Digital Display, up to 4K60 |
| Video Encode |
- HEVC: 2x 4K @60, 4x 4K @30, 8x 1080p @60, 16x 1080p @30
- H.264: 1x 4K @60, 3 X4k @30, 7x 1080p @60, 14x 1080p @30
|
| Video Decode |
- HEVC: Up to 1x 8K @30, 3x 4K @60, 7x 4K @30, 11x 1080p @60, 22x 1080p @30
- H.264: Up to 1x 4K @60, 3x 4K @30, 6x 1080p @60, 13x 1080p @30
|
| Camera | |
| GMSL | 8 Fakra-Z connectors for GMSL 1/2 automotive cameras |
| Storage | |
| M.2 | 2 M.2 Key M Socket (2280) |
| eMMC | 1 eMMC 5.1, 64GB |
| Ethernet | |
| LAN 1 | 10/100/1000 Base-T Ethernet GigE LAN, X-coded M12 Connector |
| LAN 2 | 10/100/1000 Base-T Ethernet GigE LAN, X-coded M12 Connector |
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | 4-pin K-Code M12 connector |
| Mechanical | |
| Dimensions | 260 mm x 330 mm x 80 mm (10.23" x 13" x 3.14") |
| Weight | 7 kg (15.43 lb) |
| Mounting | Wallmount |
| Environment | |
| Operating Temperature |
30W TDP Mode : -25°C to 70°C (-13°F to 158°F), with 0.63 m/s air flow
40/50W TDP Mode : -25°C to 55°C (-13°F to 131°F), with 0.63 m/s air flow
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 70°C |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4 |
| EMC | CE, FCC, EN50155, EN50121-3-2, IP67 |
| Attachment | Size |
|---|---|
 RAC-1000_RS_web.pdf | 854.23 KB |
