- Advanced NVIDIA® Jetson AGX Orin™ platform up to 275 TOPS AI performance
- 2048 NVIDIA® CUDA® cores and 64 Tensor cores
- Supports 8 GMSL 1/2 automotive cameras with Fakra-Z connectors
- Rugged chassis tested to MIL-STD-810H for shock and vibration
- Optional PCIe Gen3 x8 slot for additional I/O and networking
- 2 Isolated CAN-FD interfaces, 2 COM RS-232/422/485
- 4 M12 PoE+ GigE LAN, 2 USB 3.1 Gen 2, 1 digital display up to 4K60
- DC 9V to 50V wide input range with software ignition control

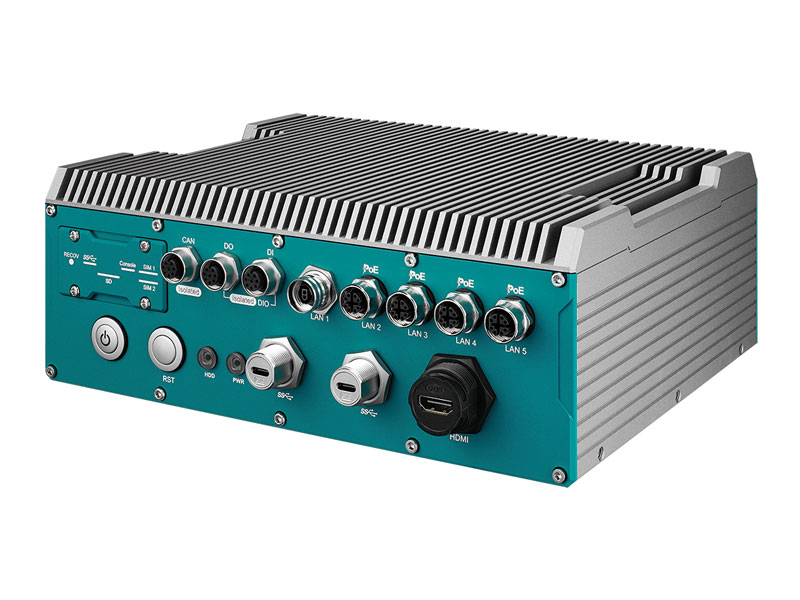

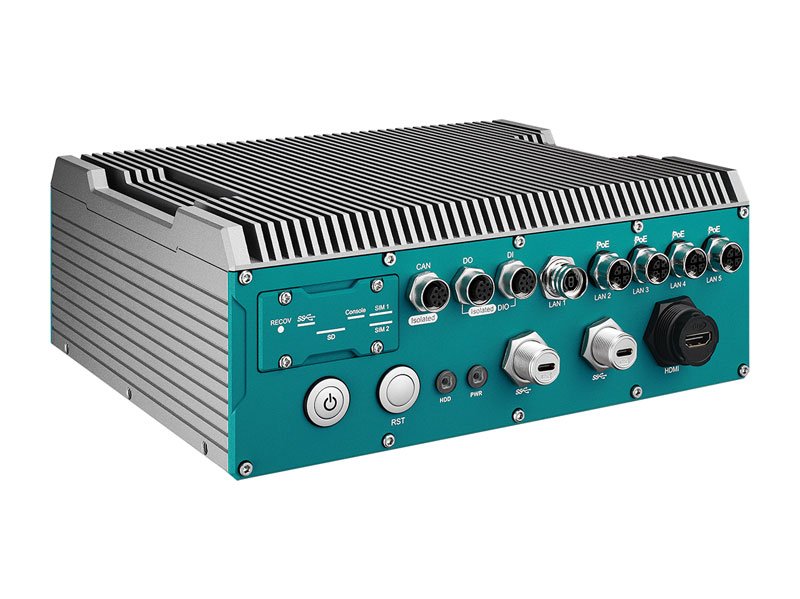

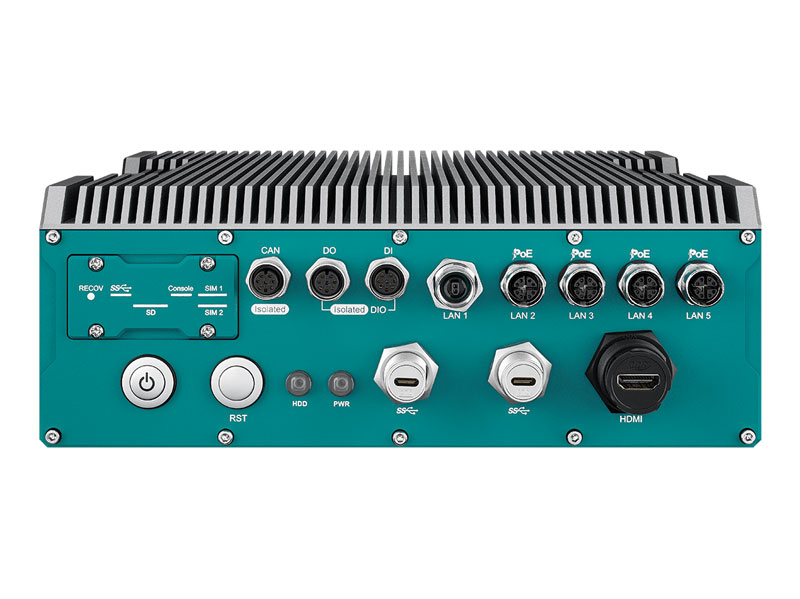

Introducing the Rugged Science NAC-1000, a high-performance edge AI computer built on the NVIDIA® Jetson AGX Orin™ platform. With a 2048-core NVIDIA Ampere™ architecture GPU, 64 Tensor cores, and a 12-core Arm® Cortex®-A78AE CPU, the NAC-1000 delivers up to 275 TOPS of AI performance. Designed for sensor-heavy deployments, it supports 8 GMSL 1/2 automotive cameras via Fakra-Z connectors, dual isolated CAN-FD, and dual COM RS-232/422/485 interfaces. A wide 9–50V DC input range, ignition control, and MIL-STD testing readiness make the NAC-1000 ideal for autonomous machines, robotics, and rugged AI-driven operations.
| System | |
| CPU |
NAC-1000-R32: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU NAC-1000-R64: 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| GPU |
NAC-1000-R32: 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores NAC-1000-R64: 2048-core NVIDIA Ampere™ architecture GPU with 64 Tensor Cores |
| DL Accelerator | 2x NVDLA Engines |
| Memory |
NAC-1000-R32: 32GB LPDDR5 NAC-1000-R64: 64GB LPDDR5 |
| OS | Linux Ubuntu 22.04 with NVIDIA JetPack 6 |
| I/O Interface | |
| USB | 2 USB 3.1 Gen 2 Type-C |
| Serial | 1 M12 COM RS-232/422/485 |
| CAN Bus | 2 Isolated CAN Bus support Flexible Data-rate |
| DIO | 12 Isolated DIO (6 DI, 6 DO) |
| Micro USB | 1 Micro USB console debug port 1 Micro USB OS flash port |
| Button | Power Button, Force Recovery Button, Reset Button |
| LED | Power, SSD |
| SIM | 2 SIM Card Sockets |
| Antenna | 6 Antennas for 5G/WiFi/4G/LTE/GPRS/UMTS |
| Expansion | |
| PCIe | 1 PCIe x8 Slot (by request) |
| M.2 |
1 M.2 Key B Socket (3042/3052, USB) 1 M.2 Key B Socket (3042/3052, PCIe) 1 M.2 Key E Socket (2230/3042, PCIe/USB/UART) |
| Graphics | |
| Interface | 1 Digital Display, up to 4K60 |
| Video Encode |
NAC-1000-R32: 1x 4K @60, 3x 4K @30, 6x 1080p @60 (HEVC) NAC-1000-R64: 2x 4K @60, 4x 4K @30, 8x 1080p @60 (HEVC) |
| Video Decode |
NAC-1000-R32: 1x 8K @30, 4x 4K @30, 9x 1080p @60 (HEVC) NAC-1000-R64: 1x 8K @30, 7x 4K @30, 11x 1080p @60 (HEVC) |
| Camera | |

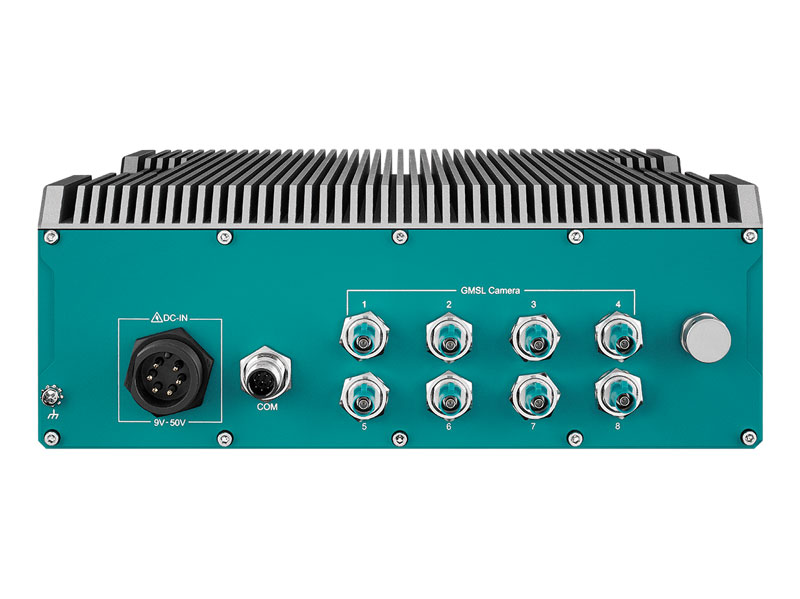

| GMSL | 8 Fakra-Z connectors for GMSL 1/2 automotive cameras |
| Sensor | |
| IMU | Bosch BMI088 |
| Magnetometer | Bosch BMM350 |
| Altimeter | Bosch BMP581 |
| Storage | |
| M.2 | 2 M.2 Key M Socket (2280) |
| eMMC | 1 eMMC 5.1, 64GB |
| SD | 1 Micro SD (External) |
| Ethernet | |
| LAN 1 | 1000Base-T1 GigE LAN, SPE Connector |
| LAN 2-5 | 4x Intel I350 GigE IEEE 802.3at PoE+ LAN, M12 X-coded |
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | 6-pin M23 Connector |
| Ignition Control | 16-mode Software Ignition Control |
| Mechanical | |
| Dimensions | 260 mm x 195 mm x 95 mm (10.24" x 7.68" x 3.74") |
| Weight | 5.5 kg (12.13 lb) |
| Mounting | Wallmount |
| Environment | |
| Operating Temperature |
50W TDP with 60W PoE: -25°C to 60°C 50W TDP without PoE: -25°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| Relative Humidity | 95% @ 75°C |
| Shock | Operating, MIL-STD-810H, Method 516.8, Procedure I |
| Vibration | Operating, MIL-STD-810H, Method 514.7, Procedure I, Category 4 |
| EMC | CE, FCC, EN50155, EN50121-3-2, EN62368-1 |
| Attachment | Size |
|---|---|
 NAC-1000_RS_web.pdf | 860.42 KB |
