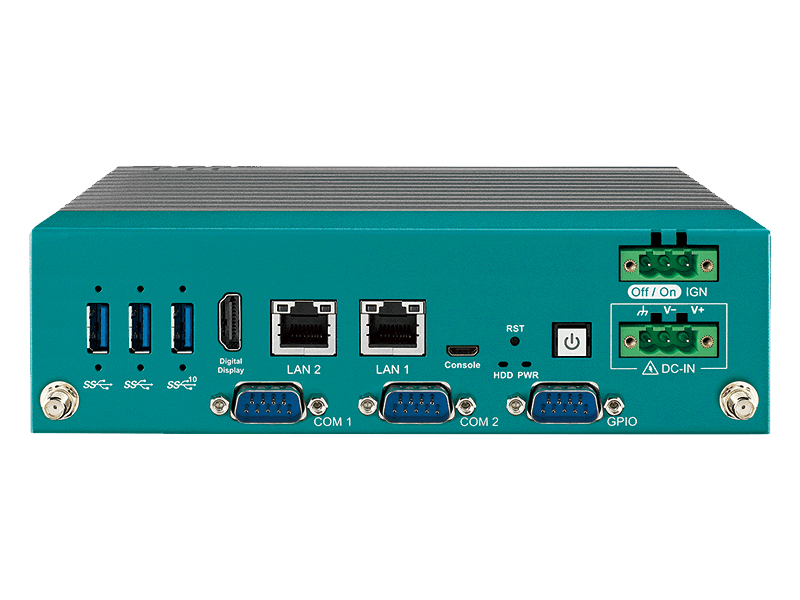

The EAC-6000 small form factor NVIDIA® Jetson Orin™ NX device boasts impressive AI performance of up to 100 TOPS. With its robust NVIDIA Ampere™ architecture encompassing 1024 NVIDIA® CUDA® cores and 32 Tensor cores, the EAC-6000 facilitates the swift deployment of AI applications at the edge. This EAC-6000 Series is equipped with a range of I/O interfaces, including 6 GigE LAN ports, 1 USB 3.1 Gen 2 port, 2 USB 3.1 ports, 2 COM RS-232/422/485 ports, 1 CAN Bus port, and 7 GPIO pins, rendering it exceptionally well-suited for advanced Edge AI applications.

EAC-6000 Small Form Factor NVIDIA Jetson Computer Models

Model

Platform

RAM

LAN

USB 3.1

Serial

GPIO

CAN

PoE+

GMSL

SIM

M.2

EAC-6000-R16

Jetson Orin NX

16GB

2

3

2

7

2

4

EAC-6000-R08

Jetson Orin NX

8GB

2

3

2

7

2

4

EAC-6100-R16

Jetson Orin NX

16GB

2

3

2

7

1

4

2

4

EAC-6100-R08

Jetson Orin NX

8GB

2

3

2

7

1

4

2

4

EAC-6200-R16

Jetson Orin NX

16GB

6

3

2

7

1

4

2

4

EAC-6200-R08

Jetson Orin NX

8GB

6

3

2

7

1

4

2

4

Model

CPU

GPU

EAC-6000-R16

R16 : 8-core Arm®Cortex®-A78AE v8.2 64-bit CPU

1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores

EAC-6000-R08

R08 : 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU

1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores

EAC-6100-R16

R16 : 8-core Arm®Cortex®-A78AE v8.2 64-bit CPU

1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores

EAC-6100-R08

R08 : 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU

1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores

EAC-6200-R16

R16 : 8-core Arm®Cortex®-A78AE v8.2 64-bit CPU

1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores

EAC-6200-R08

R08 : 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU

1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores

System
CPU
EAC-6000-R16 : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
EAC-6000-R08 : 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
GPU 1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores
DL Accelerator
EAC-6000-R16 : 2x NVDLA Engines
EAC-6000-R08 : 1x NVDLA Engine
Memory
EAC-6000-R16 : 1 16GB LPDDR5 DRAM
EAC-6000-R08 : 1 8GB LPDDR5 DRAM
Software Support
- Linux
- NVIDIA JetPack SDK
I/O Interface
USB
- 1 USB 3.1 Gen 2
- 2 USB 3.1
Serial  2 COM RS-232/422/485
CAN Bus 1 CAN Bus supports CAN FD
GPIO 7-bit GPIO
Micro USB
- 1 Micro USB Console Port
- 1 Micro USB Recovery Port
Button
- 1 Power Button
- 1 Force Recovery Button
- 1 Reset Button
LED Power, SSD
SIM 2 SIM Card Socket
Antenna 6 Antenna for WiFi/4G/5G/LTE/GPRS/UMTS
Expansion
M.2
- 2 M.2 Key B Socket (3042/3052, USB3)
- 1 M.2 Key E Socket (2230, PCIe/USB)
Graphics
Interface 1 Digital Display : Up to 7680 x 4320 @30Hz
Video Encode
- HEVC : 1x 4K @60, 3x 4K @30, 6x 1080p @60, 12x 1080p @30
- H.264 : 1x 4K @60, 2x 4K @30, 5x 1080p @60, 11x 1080p @30
Video Decode
- HEVC : Up to 1x 8K @30, 2x 4K @60, 4x 4K @30, 9x 1080p @60, 18x 1080p @30
- H.264 : Up to 1x 4K @60, 2x 4K @30, 5x 1080p @60, 11x 1080p @30
Storage
M.2 1 M.2 Key M 2280 NVMe SSD, 128GB
SD 1 Micro SD (External)
Ethernet
LAN 1 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector (Optional X-coded M12 Connector)
LAN 2 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector (Optional X-coded M12 Connector)
Power
Power Input DC 9V to 50V
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Remote Switch Terminal Block
Mechanical
Dimensions 193 mm x 132 mm x 55 mm (7.6" x 5.2" x 2.17")
Weight 1.7 kg (3.74 lb)
Mounting
- Wallmount
- DIN Rail (Optional)
Environment
Operating Temperature
15W TDP Mode : -25°C to 70°C (-13°F to 158°F)
25W TDP Mode : -25°C to 55°C (-13°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @ 70°C
Shock Operating, MIL-STD-810G, Method 516.7, Procedure I
Vibration  Operating, MIL-STD-810G, Method 514.7, Procedure I, Category 4
EMC CE, FCC, EN50155, EN50121-3-2
