- Workstation-grade 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Max 1800W power budget supports dual 900W NVIDIA® or AMD 2-slot full-length graphics card
- Expansion :Up to 7 Slot PCIe expansions with PCIe 4.0 x16/PCIe 4.0 x8 and PCIe x4 signals
- 2 Front-access M.2 and 2 2.5" SSD Tray, multiple 5G/ Wi-Fi/4G/LTE/GPRS/UMTS
- 4 DisplayPort up to 4K resolution, USB 3.2 Gen 2x2 Type C with a max speed of 20Gbps data transfer supported, 2 Independent 2.5G LAN with Intel® TSN

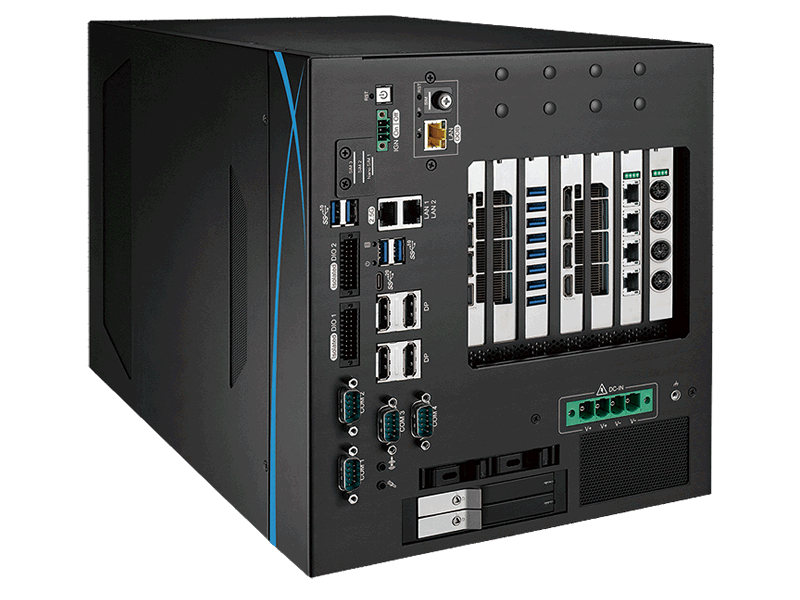

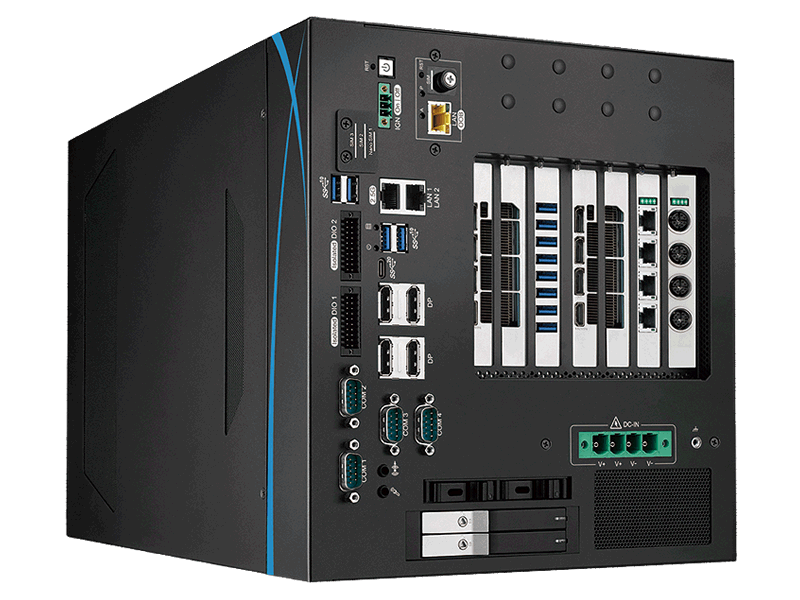

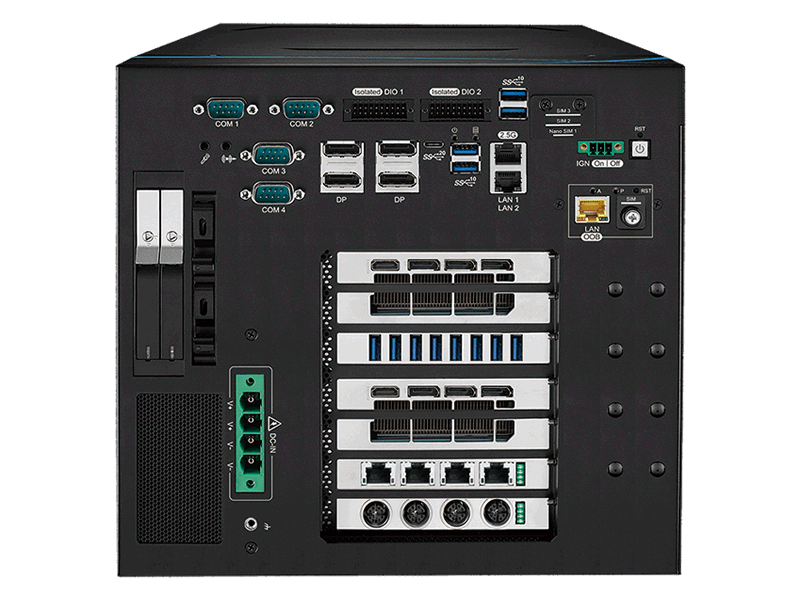

The RCX-3000-PEG is an Expandable GPU-accelerated System powered by 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor. The RCX-3000 PEG provides scalability with support for up to 7 PCIe expansions, making it capable of supporting a max 1800W power budget for dual 900W NVIDIA or AMD 2-slot full-length graphics card for AI and inferencing. Additionally, the RCX-3000 PEG offers rich I/O, including 2 GigE LAN with TSN, 4 USB 3.2 Gen 2, 4 COM, 32 Isolated DIO, 3 SIM card sockets, 1 Mini PCIe socket and provides 4 SATA for 2.5” SSD/HDD Tray. It also provides 2 front-access M.2 Key M SSD Trays for data storage. For industrial deployments, it features operating temperature range from -25°C to 45°C, and flexible power input options ranging from DC 16V to 50 and AC 90V to 220V.
The RCX-3000 PEG delivers workstation-grade computing capability, making it ideal for High-Speed AOI, 3D Mapping, Rolling Stock, and any Edge AI applications.
Model | PCIe x16 | PCIe x8 | PCIe x4 | Input Power | 2.5G LAN | USB 3.2 | SSD | M.2 |
|---|---|---|---|---|---|---|---|---|
RCX-3750-PEG | 2 | 3 | DC | 2 | 4 | 2 | 2 | |
RCX-3750-APEG | 2 | 3 | AC | 2 | 4 | 2 | 2 | |
RCX-3400-PEG | 1 | 2 | DC | 2 | 4 | 2 | 2 |
| System | |
| Processor |
- 24-core 14th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
|
| Chipset | Intel® R680E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 4 DDR5 UDIMM, up to 192GB (ECC/Non-ECC) |
| OS | Windows 10/11, Linux |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8kV) |
| USB |
- 4 USB 3.2 Gen 2 Type A
- 1 USB 3.2 Gen 2x2 Type C (5V/3A)
|
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | HDD, Power, OOB |
| SIM Card | 3 External SIM Card Sockets |
| Expansion | |
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/SIM Card |
| PCIe |
- RCX-3750 PEG/APEG :
2 PCIe x16 Slot with PCIe 4.0 x8 Signal
3 PCIe x16 Slot with PCIe x4 Signal
- RCX-3430 PEG :
1 PCIe x16 Slot with PCIe 4.0 x16 Signal
2 PCIe x16 Slot with PCIe x4 Signal
|
| M.2 |
- 2 M.2 Key B Socket (2280/3042/3052, PCIe x2/USB3(Default)/USB2)
- 1 M.2 Key E Socket (2230, PCIe x1/USB)
|
| Graphics | |
| Graphics Processor | Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture |
| Interface | 4 Independent displays : 4 DisplayPort, up to 4096 x 2304 @60Hz |
| Storage | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| M.2 | 2 Front-access M.2 Key M SSD Tray (2280, PCIe x4) |
| Storage Device |
- 2 Front-access 2.5" SSD/HDD Tray
- 2 Internal Bracket 2.5" SSD/HDD
|
| Audio | |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I226 2.5GigE LAN supports TSN |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
| Power | |
| Power Input |
- RCX-3750/3430 PEG : DC 16V to 50V
- RCX-3750 APEG : AC 90V to 240V (2000W @220V for dual discrete graphics card operation)
|
| Power Interface |
- RCX-3750/3430 PEG : 4-pin Terminal Block : V+, V+, V-, V-
- RCX-3750 APEG : 3-pin C14-type AC Plug
|
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Out-of-Band Management | |
| MCU | Nuvoton NUC980 |
| Interface | OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector |
| Remote Management | Support Remote Power ON/OFF, Reset and Power Cycling |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension |
- RCX-3750 PEG/APEG : 253mm x 269mm x 398mm (9.96"x 10.59"x 15.67")
- RCX-3430 PEG : 206mm x 269mm 398mm (8.11"x 10.59"x 15.67")
|
| Weight |
- RCX-3750 PEG : 10.2 kg (22.5lb)
- RCX-3750 APEG : 10.2 kg (22.5lb)
- RCX-3430 PEG : 8.6 kg (18.96lb)
|
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temp. | -25°C to 45°C (-13°F to 113°F) |
| Storage Temp. | -25°C to 85°C (-13°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% @45°C |
| Shock/Vibration |
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
| Attachment | Size |
|---|---|
 RCX-3000 PEG Spec Sheet | 1.07 MB |
