- Server-level Platform : Intel® Xeon® D-2800/D-2700 Processor (Eddy Lake D)
- 2 10G SFP+, 4 GigE LAN, 4 USB, 16-bit Isolated DIO
- 10 M.2/U.2 PCIe x4 Storage Devices with Intel® VROC Key supports RAID 0, 1, 5, 10
- Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS, 2 Front-access 2.5" SSD/HDD Tray
- Supports Intel® vPro, Intel® QAT (QuickAssist Technology), and TPM 2.0
- DC 16V to 50V, Software Ignition Control

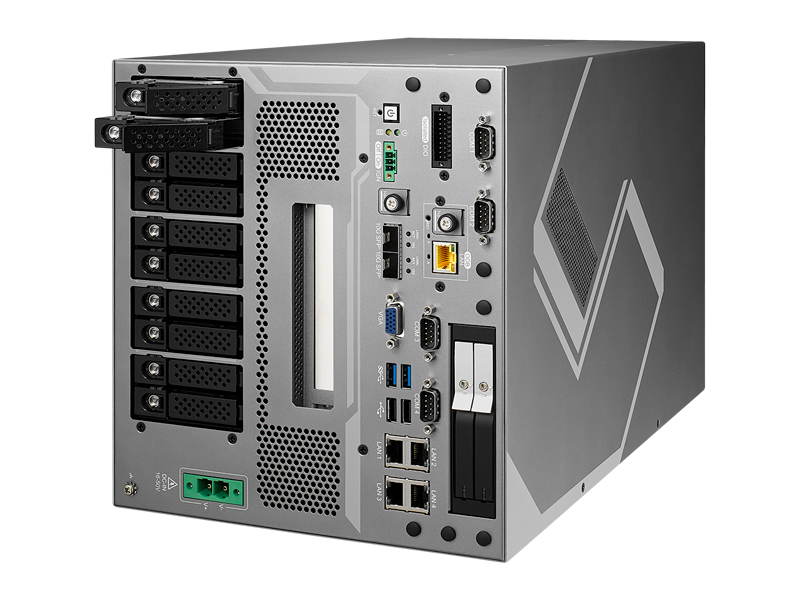

Introducing the Rugged Science ICS-1110S, a high-performance storage server system powered by the Intel® Xeon® D-2800/D-2700 Processor. With support for up to 512GB of DDR4 memory, the ICS-1110S is designed for demanding Edge AI applications in data storage, management, and protection. It features 2 10G SFP+ ports, 4 GigE LAN ports, 1 PCIe x2 slot, 10 U.2 trays, and 2 SSD trays. Leveraging Intel® QuickAssist Technology and high-speed interfaces, the ICS-1110S delivers optimized performance for a variety of data-intensive tasks.
Model | CPU | LAN 10G SPF+ | LAN 1G | PCIe x2 | U.2 Tray | SSD Tray | Power Input |
|---|---|---|---|---|---|---|---|
ICS-1110S-2876NT | D-2876NT | 2 | 4 | 1 | 10 | 2 | DC |
ICS-1110S-2752TER | D-2752TER | 2 | 4 | 1 | 10 | 2 | DC |
| System | |
| Processor |
- 16-core Intel® Xeon® D-2876NT Processor (Eddy Lake D HCC)
- 12-core Intel® Xeon® D-2752TER Processor (Ice Lake D HCC)
|
| BIOS | AMI |
| SIO | IT8786E |
| Memory |
8 DDR4 UDIMM/RDIMM 2933MHz, up to 512GB
(ECC support by UDIMM only)
|
| OS | Windows 10, Windows Server, Linux |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 |
| USB |
- 2 USB 3.0 Type-A
- 2 USB 2.0 Type-A
|
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| Display | VGA : Up to 1920 x 1080 @60Hz |
| LED | Power, HDD, Wireless, OOB |
| SIM Card | 1 External Nano SIM Card Socket |
| Expansion | |
| PCIe | 1 PCIe x16 slot with PCIe x2 signal (Gen 4) |
| M.2 |
- 1 M.2 Key B Socket (3042/3052/2280, PCIe x2/USB 3.0)
- 1 M.2 Key E Socket (2230, PCIe x1)
|
| Storage | |
| SATA |
- 2 SATA III (6Gbps) support software RAID 0, 1
- 2 Front-access 2.5" SSD/HDD Tray
|
| M.2 | 1 M.2 Key M Socket (2280/22110, PCIe x1/SATA) |
| U.2 |
10 U.2 Front-access tray (PCIex4) support RAID 0, 1 , 5, 10
*M.2 supported by optional accessory
|
| Ethernet | |
| LAN 1 | Intel® I350 GigE LAN |
| LAN 2 | Intel® I350 GigE LAN |
| LAN 3 | Intel® I350 GigE LAN |
| LAN 4 | Intel® I350 GigE LAN |
| 10G SFP+ | |
| LAN 5 | 10G SFP+ LAN by Intel® Xeon® SoC (OS Windows Server support only) |
| LAN 6 | 10G SFP+ LAN by Intel® Xeon® SoC (OS Windows Server support only) |
| Power | |
| Power Input | DC 16V to 50V |
| Power Interface | 2-pin Terminal Block : V+, V- |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Out-of-Band Management | |
| MCU | Nuvoton NUC980 |
| Interface | OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector |
|
Remote
Management
|
Support Remote Power ON/OFF, Reset and Power Cycling |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 243.5mm x 271.3mm x 390.0mm (9.58" x 10.68" x 15.35") |
| Weight | 7.9kg (17.41lb) |
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temp. | -25°C to 65°C (-13°F to 149°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% @65°C |
| Vibration | MIL-STD-810G method 514.6, Category 4 |
| Shock | MIL-STD-810G method 516.6, Procedure I |
| EMC | CE, FCC, ICES, EN50155, EN50121-3-2 |
