- Server-level Platform : Intel® Xeon® D-2800/D-2700 Processor (Eddy Lake D)
- Max 1800W power budget supports dual 900W NVIDIA® or AMD 2-slot full-length graphics card
- Flexible Power Input Design with Software Ignition Control: DC 16V to 50V or AC 220V
- 2 10G SFP+, 4 GigE LAN, 4 USB, 16-bit Isolated DIO
- Max 6 PCIe expansions : PCIe 4.0 x16, PCIe x8, PCIe x2
- Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS, 2 Front-access 2.5" SSD/HDD Tray
- Supports Intel® vPro, Intel® QAT (QuickAssist Technology), and TPM 2.0
- Optional supports TSN and Intel® TCC
- Support remote devices Out-Of-Band management functions powered by Allxon

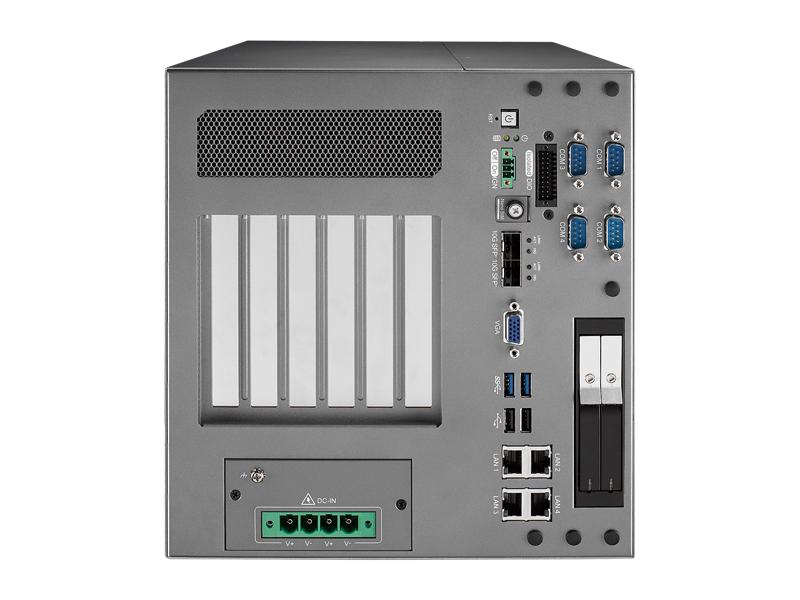

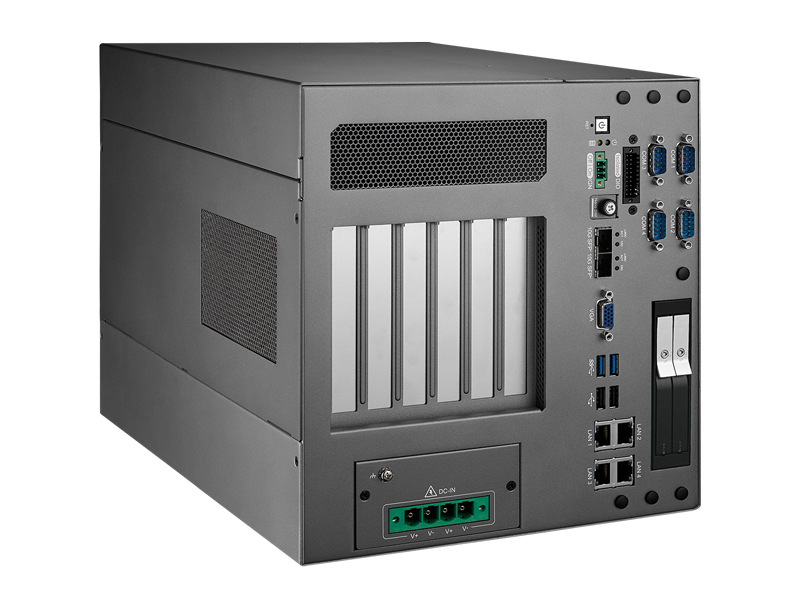

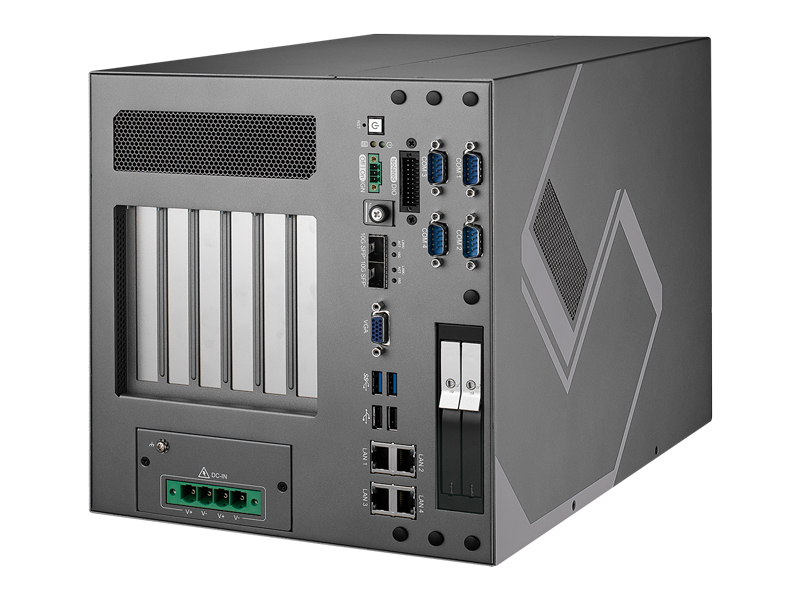

Introducing the Rugged Science ICS-1000, an Expandable GPU-accelerated System with discrete graphics, powered by the Intel® Xeon® D-2800/D-2700 Processor. This system delivers server-grade computing capabilities and supports up to 6 PCIe slot expansions, accommodating dual NVIDIA/AMD graphics cards with a power budget of up to 1800W for AI and inferencing tasks. Featuring Intel® QuickAssist Technology and high-speed interfaces like PCIe 4.0, SATA 3.0, USB 3.0, and 10GigE LAN, the ICS-1000 provides optimized performance in space and power-constrained environments. It's ideal for applications at the Edge, including autonomous driving, robotic control, and public security.
Model | LAN 10G SFP+ | LAN 1G | PCIe x16 | PCIe x8 | PCIe x2 | SSD Tray | Power Input |
|---|---|---|---|---|---|---|---|
ICS-1640-2876NT | 2 | 4 | 2 | 1 | 1 | 2 | DC |
ICS-1640A-2876NT | 2 | 4 | 2 | 1 | 1 | 2 | AC |
ICS-1660-2876NT | 2 | 4 | - | 5 | 1 | 2 | DC |
ICS-1660A-2876NT | 2 | 4 | - | 5 | 1 | 2 | AC |
ICS-1640-2752TER | 2 | 4 | 2 | 1 | 1 | 2 | DC |
ICS-1640A-2752TER | 2 | 4 | 2 | 1 | 1 | 2 | AC |
ICS-1660-2752TER | 2 | 4 | - | 5 | 1 | 2 | DC |
ICS-1660A-2752TER | 2 | 4 | - | 5 | 1 | 2 | AC |
| System | |
| Processor |
- 16-core Intel® Xeon® D-2876NT Processor (Eddy Lake D HCC)
- 12-core Intel® Xeon® D-2752TER Processor (Ice Lake D HCC)
|
| BIOS | AMI |
| SIO | IT8786E |
| Memory |
8 DDR4 UDIMM/RDIMM 2933MHz, up to 512GB
(ECC support by UDIMM only)
|
| OS | Windows 10, Windows Server, Linux |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 |
| USB |
- 2 USB 3.0 Type-A
- 2 USB 2.0 Type-A
|
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| Display | VGA : Up to 1920 x 1080 @60Hz |
| LED | Power, HDD, Wireless, OOB |
| SIM Card | 1 External Nano SIM Card Socket |
| Expansion | |
| PCIe |
ICS-1660 : 6 PCIe x16 slots with 4 PCIe 4.0 x8, 1 PCIe x8,
1 PCIe x2 signal
ICS-1640 : 4 PCIe x16 slots with 2 PCIe 4.0 x16, 1 PCIe x8, 1 PCIe x2 signal
|
| M.2 |
- 1 M.2 Key B Socket (3042/3052/2280, PCIe x2/USB 3.0)
- 1 M.2 Key E Socket (2230, PCIe x1)
|
| Storage | |
| SATA | 2 SATA III (6Gbps) support software RAID 0, 1 |
| M.2 | 1 M.2 Key M Socket (2280/22110, PCIe x2/SATA) |
| Storage Device | 2 Front-access 2.5" SSD/HDD Tray |
| Ethernet | |
| LAN 1 | Intel® I350 GigE LAN |
| LAN 2 | Intel® I350 GigE LAN |
| LAN 3 | Intel® I350 GigE LAN |
| LAN 4 | Intel® I350 GigE LAN |
| 10G SFP+ | |
| LAN 5 | 10G SFP+ LAN by Intel® Xeon® SoC (OS Windows Server support only) |
| LAN 6 | 10G SFP+ LAN by Intel® Xeon® SoC (OS Windows Server support only) |
| Power | |
| Power Input |
ICS-1600 : DC 16V to 50V
ICS-1600A : AC 90V to 240V
(2000W @220V for dual discrete graphics card operation)
|
| Power Interface |
ICS-1600 : 4-pin Terminal Block : V+, V+, V-, V ICS-1600A : 3-pin C14-type AC Plug |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Out-of-Band Management | |
| MCU | Nuvoton NUC980 |
| Interface | OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector |
|
Remote
Management
|
Support Remote Power ON/OFF, Reset and Power Cycling |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 243.5mm x 271.3mm x 390.0mm (9.58" x 10.68" x 15.35") |
| Weight | 10.2kg (22.48lb) |
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temp. |
ICS-1600 : -25°C to 45°C (-13°F to 113°F)
ICS-1600A : -5°C to 45°C (23°F to 113°F)
|
| Storage Temp. |
ICS-1600 : -40°C to 85°C (-40°F to 185°F)
ICS-1600A : -20°C to 85°C (-4°F to 185°F)
|
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% @45°C |
| Vibration | MIL-STD-810G method 514.6, Category 4 |
| Shock | MIL-STD-810G method 516.6, Procedure I |
| EMC | CE, FCC, ICES, EN50155, EN50121-3-2 |
| Attachment | Size |
|---|---|
 ICS-1000 Spec Sheet | 826.1 KB |
