- Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML-S) running with Intel® W480E chipset supports max 95W TDP CPU
- Supports up to 250W NVIDIA® or AMD Graphics card
- NVIDIA® Tesla®/Quadro®/GeForce® graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
- 12V to 50V wide range DC Power Input with 80V Surge Protection
- 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
- 6-port USB 3.2 support up to 10Gbps data transfer
- Storage : 4 2.5" SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 4 SATA III
- Expansion : 2 PCIe, 1 M.2 Key B, 1 M.2 Key E, 2 Mini PCIe
- Multiple VGA, DVI, HDMI and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution
- 32 Isolated DIO, 4 COM RS-232/422/485
- 3 External Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
- Supports Configurable Software Ignition Power Control and TPM 2.0
- Optimized user-friendly design for easier system maintenance
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

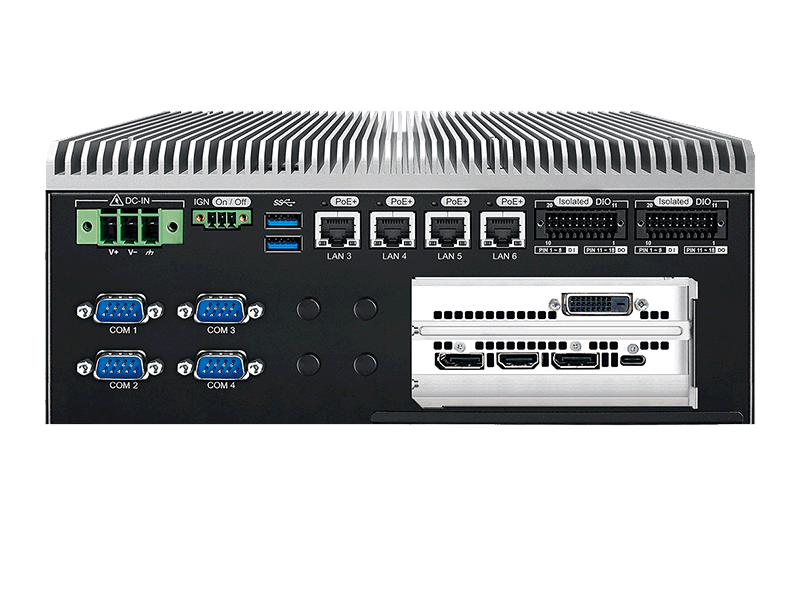

Powered by 10-core 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor (Comet Lake), ECX-2400S PEG integrated with independent NVIDIA® Tesla®/Quadro®/GeForce® graphics card and supported advanced NVIDIA® CUDA® cores, delivering leading AI computing productivity. It features up to 6 GigE LAN with 4 PoE+, dual front-access M.2 SSD Tray with PCIe x2 signal, 6 USB 3.2 connections providing up to 10Gbps data transfer rate, and max 7 independent display up to 4K resolution. With smart manageability and industrial-grade reliability, ECX-2400S PEG AI Computing System is ideal for Traffic Vision, Robotic Control, Public Surveillance and In-vehicle Computing applications.
Model | LAN | PoE | M.2 | SSD | PXIe x16 | PCIe x4 | USB | COM | SIM | Isolated DIO | Fan Sink |
|---|---|---|---|---|---|---|---|---|---|---|---|
ECX-2400-PEG | 6 | 4 | NA | 4 | 1 | 1 | 6 | 4 | 3 | 32 | No |
ECX-2400F-PEG | 6 | 4 | NA | 4 | 1 | 1 | 6 | 4 | 3 | 32 | Yes |
ECX-2400S-PEG | 6 | 4 | 2 | 2 | 1 | 1 | 6 | 4 | 3 | 32 | No |
ECX-2400SF-PEG | 6 | 4 | 2 | 2 | 1 | 1 | 6 | 4 | 3 | 32 | Yes |
ECX-2300-PEG | 2 | NA | NA | 4 | 1 | 1 | 6 | 4 | 3 | 16 GPIO | No |
ECX-2300F-PEG | 2 | NA | NA | 4 | 1 | 1 | 6 | 4 | 3 | 16 GPIO | Yes |
| System | |
| Processor | 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S) |
| Chipset | Intel® W480E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC) |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
6 USB 3.2 (External)
|
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 3 External Nano SIM Card Sockets |
| Expansion | |
| Mini PCIe | 2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA |
| PCI/PCIe |
- 1 PCIe x16 Slot with x16 signal
- 1 PCIe x16 Slot with x4 signal
|
| M.2 |
- 1 M.2 Key B Socket (3042/3052)
- 1 M.2 Key E Socket (2230)
|
| Graphics | |
| Graphics Processor |
- Intel® UHD Graphics 630
- Independent Graphics : By request
|
| Interface |
Up to 7 independent displays :
- 1 VGA : Up to 1920 x 1080 @60Hz
- 1 DVI-D : Up to 1920 x 1080 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
- By requested graphic card
|
| Storage | |
| SATA | 4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA | 2 SATA III (Mini PCIe type, 6Gbps) |
| M.2 | - 1 M.2 Key M Socket (2280, PCIe x2) |
| Storage Device |
- 1 Micro SD Card, Push-in/Push-out ejector
- 4 Front-access 2.5" SSD/HDD Tray
|
| Audio | |
| Audio Codec | Realtek ALC888S, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 14.0 |
| LAN 2 | Intel® I210 GigE LAN |
| PoE | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| Power | |
| Power Input | 12V to 50V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Infineon SLB9665 supports TPM 2.0, LPC interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension | 260mm x 240mm x 104mm (10.2" x 9.45" x 4.1") |
| Weight | 5.5 kg (12.13 lb) |
| Mounting |
- Wallmount by mounting bracket
- DIN Rail mount (Optional)
|
| Environment | |
| Operating Temperature |
35W & 65W TDP CPU : -20°C to 45°C (-4°F to 113°F), with System Fan
80W & 95W TDP CPU : -20°C to 45°C (-4°F to 113°F), with Fan Sink and System Fan
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% at 45°C |
| Shock/Vibration |
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
| Attachment | Size |
|---|---|
 ECX-2400-PEG Rugged NVIDIA Computer | 3.57 MB |
