- Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Optional supports outstanding AI computing productivity by advanced and compact NVIDIA® Quadro® MXM graphics
- 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection, Software Ignition Power Control, optional UPS supported
- Fanless design for railway in-vehicle applications, fully compliant with EN50155 : 2017
- 8 Independent 2.5GigE LAN M12 X-coded with 4 IEEE 802.3at PoE+, 1 2.5GigE LAN, 1 GigE LAN, 4 Isolated COM
- 2 Front-access 2.5"SSD/HDD Tray, multiple 5G/WiFi/4G/3G/LTE/GPRS/UMTS
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

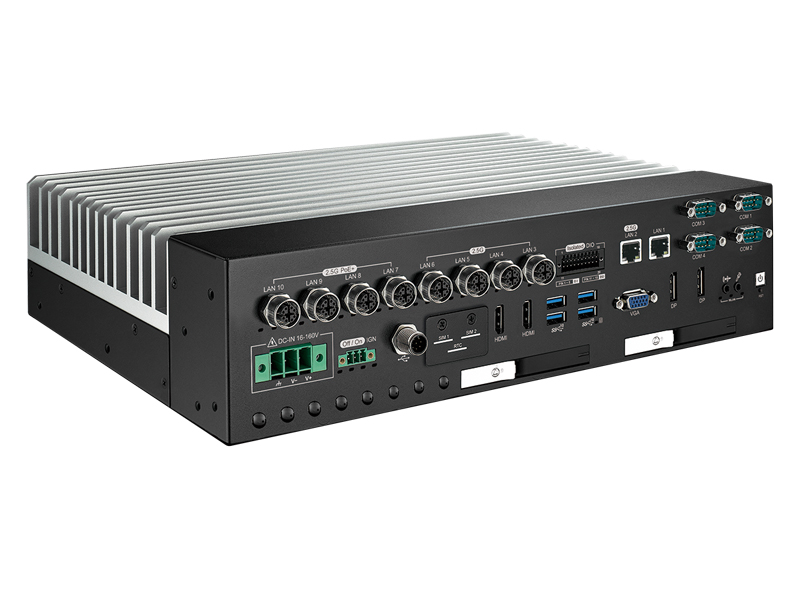

The IVX-1000 Computing Workstation is equipped with Intel® Core™ i9/i7/i5/i3 Processors (14th gen, codename: RPL-S Refresh/RPL-S/ADL-S), featuring a performance hybrid architecture and advanced AI capabilities for enhanced and faster applications. The IVX-1000 optionally supports MXM Graphics powered by NVIDIA Quadro® platforms, making it ideal for harsh environments that require excellent computing power, which aids in accelerating traffic vision deployment in rail applications. With a wide power input range of 16V to 160V, 500V surge protection, and EN50155 certification, the IVX-1000 provides flexibility, optimal power integration, and reliable performance for in-vehicle computing in ADAS, mobile communication, public security, and various Edge AI applications.
Model Number | GigE LAN | 2.5G LAN | 2.5G PoE+ | Isolated COM | Isolated DIO | SSD Tray | UPS |
|---|---|---|---|---|---|---|---|
IVX-1000 | 1 | 1 RJ45 | 4 M14 | 4 | 16 | 2 | NA |
IVX-1000 ICY | 1 | 8 M12 | 4 M12 | 4 | 16 | 6 | Yes |
| System | |
| Processor |
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
- 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
- 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
|
| Chipset | Intel® R680E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 4800MHz SO-DIMM, up to 64GB |
| OS | Windows 11, Windows 10, Linux |
| I/O Interface | |
| Serial | 4 Isolated COM RS-232/422/485 |
| USB |
- 4 USB 3.2 Gen2
- 1 A-coded M12 USB 2.0 with 2-port signal
|
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Sockets |
| RTC Battery | Front-access RTC Battery |
| Expansion | |
| Mini PCIe | 1 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA |
| M.2 |
- 1 M.2 Key B Socket (3052/2280, PCIe/USB 3, default/USB 2)
- 1 M.2 Key E Socket (2230, PCIe/USB)
|
| SUMIT | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor |
- Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
- Independent MXM Graphics : By request |
| Interface |
- 1 VGA : Up to 1920 x 1200 @60Hz
- 2 HDMI : Up to 1920 x 1080 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz (By requested MXM)
|
| Storage | |
| SATA | 2 SATA III (6Gbps) support software RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
| Storage Device | 2 Front-access 2.5"SSD/HDD Tray |
| Audio | |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
| LAN 3 | Intel® I226 2.5GigE LAN, X-Coded M12 Connector |
| LAN 4 | Intel® I226 2.5GigE LAN, X-Coded M12 Connector |
| LAN 5 | Intel® I226 2.5GigE LAN, X-Coded M12 Connector |
| LAN 6 | Intel® I226 2.5GigE LAN, X-Coded M12 Connector |
| LAN 7 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, X-Coded M12 Connector |
| LAN 8 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, X-Coded M12 Connector |
| LAN 9 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, X-Coded M12 Connector |
| LAN 10 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, X-Coded M12 Connector |
| Power | |
| Power Input | DC 16V to 160V, max. support 200W |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Isolation | 4kV DC |
| Surge Protection | 0.5kV DC 8/20us Surge |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 360mm x 228mm x 88mm (14.2" x 8.9" x 3.5") |
| Weight | 7.1 kg (15.65 lb) |
| Mounting |
- Wallmount by mounting bracket
- Rackmount (Optional)
|
| Environment | |
| Operating Temperature |
35W TDP CPU without GPU : -25°C to 75°C (-13°F to 167°F)
35W TDP CPU with <50W GPU : -25°C to 55°C (-13°F to 131°F)
65W TDP CPU without GPU : -25°C to 65°C (-13°F to 149°F)
65W TDP CPU with <50W GPU : -25°C to 45°C (-13°F to 113°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative humidity | 95% at 55°C |
| Shock/Vibration |
- IEC 61373 : 2010
- Railway Applications : Rolling Stock Equipment, Shock and Vibration Test
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
| Attachment | Size |
|---|---|
 IVX-1000 NVIDIA GPU Industrial Computer Data Sheet | 1.02 MB |
