- Quad Core 6th Generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Skylake-H) with CM236 Chipset supports up to 4K displays
- 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
- Fanless, -25°C to 70°C Operating Temperature
- 18 Gigabit LAN with 16 IEEE 802.3at PoE+ compliant
- 4 Mini PCIe, 4 SIM Card Socket (3 External)
- 4 Front-access 2.5" SSD Tray, 5 USB
- Supports 3G/4G/LTE/WiFi/GPRS/UMTS
- 16 Isolated DIO, 16 GPIO
- Configurable Ignition Power Control
- 6V to 78V DC-in, 200V Surge Protection
- UPS Supported (Optional)

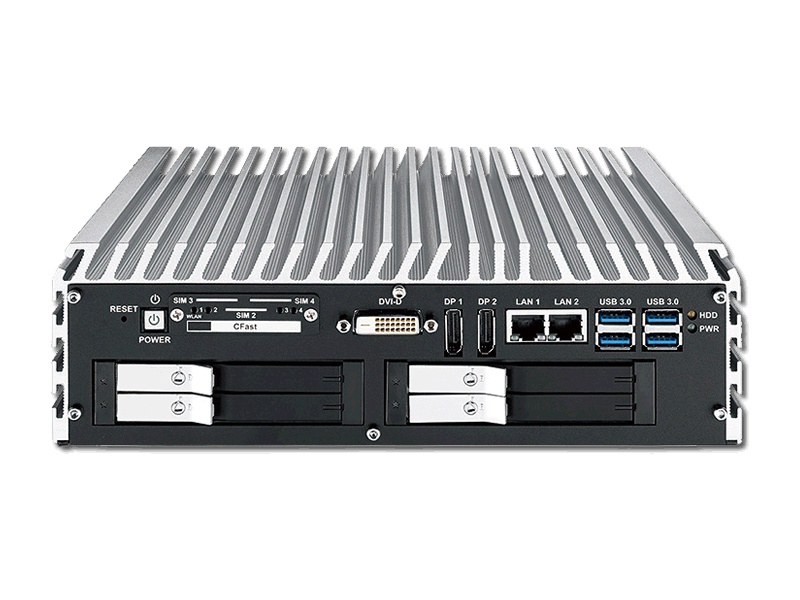

Powered by Quad Core 6th Generation Intel® Xeon®/Core™ (Skylake-H) engine, DDR4 2133MHz Memory up to 32GB, fanless -25°C to 70°C operating temperature, all-in-one integrated features, multiple I/O connection, user-friendly, smart manageability, excellent mobile availability, 6V to 78V power input with 200V surge protection, ignition power control, intelligent circuit protection and rugged reliability in harsh environments. The IVH-9000 Series Fanless Vehicle Computing System is your perfect choices for Rolling Stock System, Intelligent Transportation System (ITS), high-performance Mobile DVR/NVR, Intelligent Surveillance, Fleet Management, Industry 4.0 and any Internet of Thing (IoT) performance driven real-time vehicle computing applications.
Model | LAN | PoE | SSD Tray | COM | USB | SIM | GPIO |
|---|---|---|---|---|---|---|---|
IVH-9016-PoER505M | 2 | 16 | 4 | 4 | 4 | 4 | 16 |
IVH-9008-PoER505M | 10 | 8 | 4 | 4 | 4 | 4 | 16 |
| System | |
| Processor | Intel® Xeon® E3-1505M v5/Core™ i7-6820EQ/i5-6440EQ Processor (Skylake-H) |
| Chipset | Intel® CM236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2133MHz SO-DIMM, up to 32GB |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 |
| USB |
- 4 USB 3.0 (External)
- 1 USB 2.0 (Internal) |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| GPIO | 16 GPIO |
| LED | Power, HDD, Wireless, PoE |
| SIM Card | 4 SIM Card Socket (3 External, 1 Internal) |
| Expansion | |
| Mini PCIe |
4 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/USB/Internal SIM Card/ Optional mSATA
- 3 Mini PCIe for PCIe/USB/External SIM Card
|
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor |
Intel® HD Graphics P530/530
|
| Display Memory | Shared Memory, up to 1.7GB |
| Interface |
- DVI-D : Up to 1920 x 1200 @ 60Hz
- DisplayPort 1 : Up to 4096 x 2304 @ 60Hz
- DisplayPort 2 : Up to 4096 x 2304 @ 60Hz
|
| Storage | |
| SATA | 6 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 1 CFast Socket, Push-in/Push-out Ejector
- 4 Front-access 2.5" SSD/HDD Tray
|
| Audio | |
| Audio Codec | Realtek ALC888S, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219 Gigabit LAN supports iAMT 11.0 |
| LAN 2 | Intel® I210 Gigabit LAN |
| PoE | |
| LAN 3 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 4 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 5 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 6 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 7 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 8 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 9 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 10 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 11 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 12 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 13 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 14 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 15 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 16 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 17 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| LAN 18 | Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 |
| Power | |
| Power Input | 6V to 78V, DC-in |
| Power Interface |
3-pin Terminal Block : V+, V-, Frame Ground
|
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 5-pin Terminal Block : On, Off, IGN, LED+, LED- |
| Surge Protection | Up to 200V/1ms Transient Power |
| UPS | Supported (Optional) |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| GPS | Onboard GPS Module supports Accelerometer, Gyroscope and Odometer (Optional) |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |
| Dimension (W x L x H) | 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight | 4.2 kg (9.26 lb) |
| Mounting |
- Wallmount by mounting bracket
- Din Rail Mount (Optional)
- 2U Rackmount (Optional)
|
| Environment | |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 70°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
