- Intel® X710-BM2 Dual Port 10Gigabit Ethernet Controller supports up to 10Gbps data rate
- IEEE 802.3 Fast Ethernet over optical fiber standard compliant
- IEEE 1588 Precision Time Protocol (PTP)
- Up to 9728 bytes Jumbo Frame, Link Aggregation
- Supports Wake-on-LAN (WoL) & PXE
- Intel® Ethernet Power Management
- Intel® Data Direct I/O Technology
- SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
- -25°C to 55°C Operating Temperature

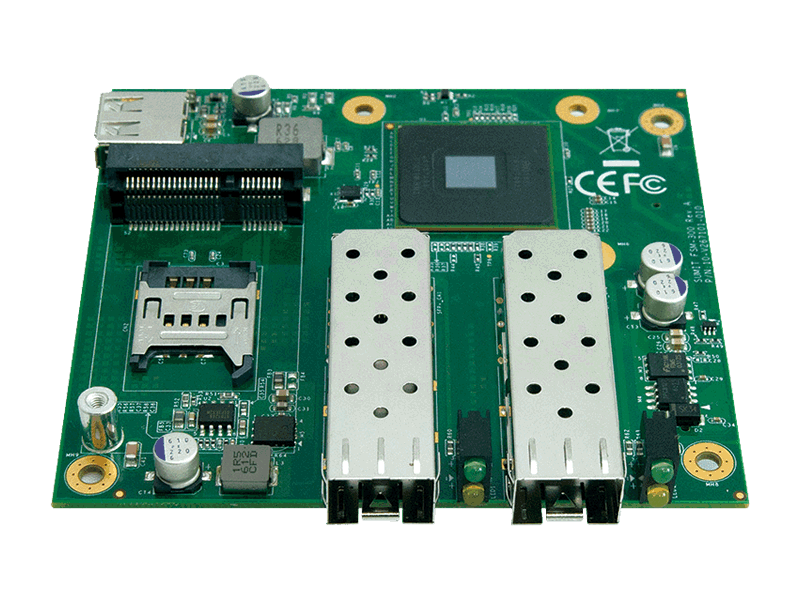

SUMIT Expansion Card with 2 10GigE SFP+ Fiber LAN, 1 Mini PCIe Slot, 1 SIM Socket, 1 USB 2.0, -25°C to 55°C
| Ethernet | |
| Controller | Intel® Ethernet Controller X710-BM2 |
| Controller Qty | 1 |
| Data Rate | 10Gbps |
| Jumbe Frame | Up to 9728 byte |
| Link Aggregation | Present |
| I/O Interface | |
| Bus Type |
FSM-710-BM2 : SUMIT B
FSM-710-BM2-E : SUMIT A, B |
| LAN | 2 10GBASE SFP+ Fiber Connector |
| Mini PCIe | 1 Full Size Mini PCIe Socket |
| SIM Card | 1 SIM Card Socket (Internal, optional supports External I/O Type) |
| USB | 1 USB 2.0 Connector |
| Mechanical | |
| Dimensions (W x L) | 90mm x 96mm (3.5" x 3.8") |
| Weight | 160 g |
| Environment | |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 55°C |
| EMC | CE, FCC |
| Attachment | Size |
|---|---|
 FSM-710-BM2 Data Sheet.pdf | 840.7 KB |
